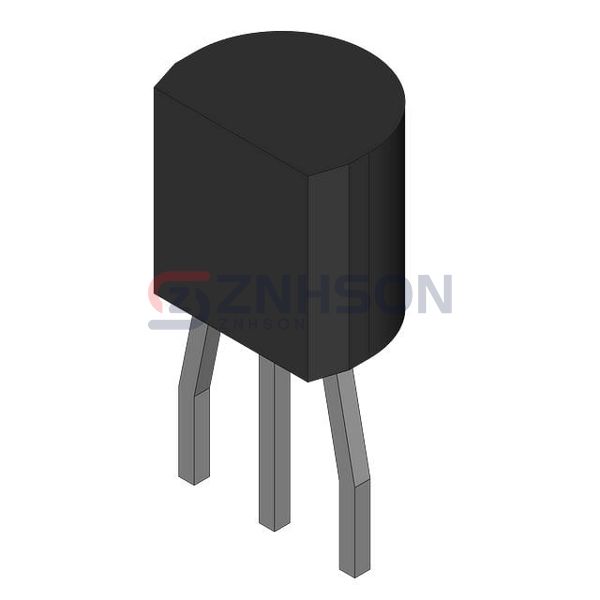

PN3563
Fairchild Semiconductor
Fairchild Semiconductor
RF SMALL SIGNAL TRANSISTOR
$0.04
Available to order
Reference Price (USD)
1+
$0.04000
500+
$0.0396
1000+
$0.0392
1500+
$0.0388
2000+
$0.0384
2500+
$0.038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize signal clarity with PN3563 RF BJT transistors by Fairchild Semiconductor. Featuring low distortion and high linearity, these components are perfect for high-sensitivity applications like medical imaging equipment and military communications. Their compact design allows for easy integration without compromising performance. Don t miss out inquire now for bulk discounts and technical specifications!
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 15V
- Frequency - Transition: 1.5GHz
- Noise Figure (dB Typ @ f): -
- Gain: 14dB ~ 26dB
- Power - Max: 350mW
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 8mA, 10V
- Current - Collector (Ic) (Max): 50mA
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
