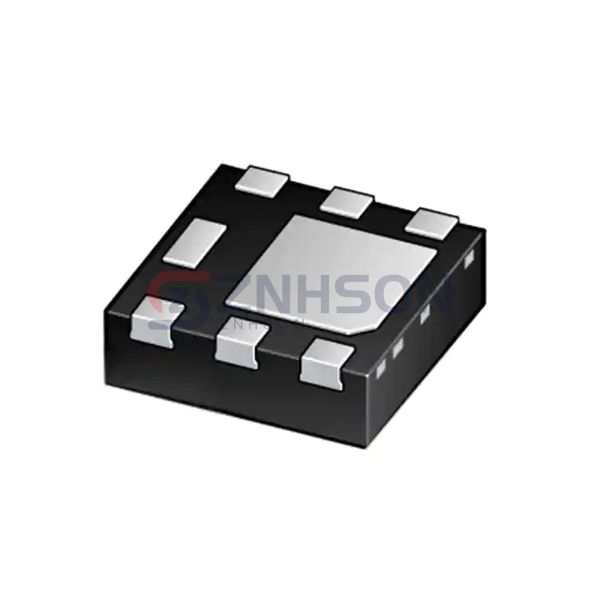

PMPB23XNE,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 20V 7A DFN2020MD-6
$0.09
Available to order
Reference Price (USD)
3,000+
$0.18084
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
PMPB23XNE,115 by NXP USA Inc. is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, PMPB23XNE,115 ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 7A, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1136 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN1010B-6
- Package / Case: 6-XFDFN Exposed Pad
