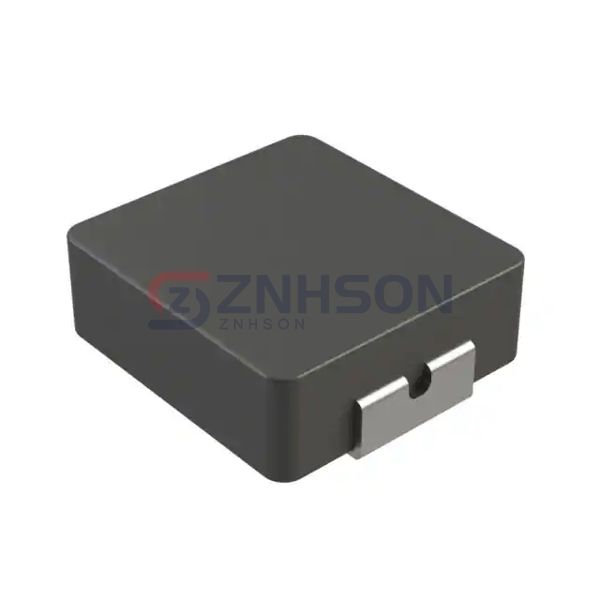

PM4548.561NLT
Pulse Electronics Power
Pulse Electronics Power
FIXED IND 560NH 13A 6.5 MOHM SMD
$0.54
Available to order
Reference Price (USD)
1+
$0.53708
500+
$0.5317092
1000+
$0.5263384
1500+
$0.5209676
2000+
$0.5155968
2500+
$0.510226
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with PM4548.561NLT Fixed Inductors from Pulse Electronics Power, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. PM4548.561NLT ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Molded
- Material - Core: -
- Inductance: 560 nH
- Tolerance: ±20%
- Current Rating (Amps): 13 A
- Current - Saturation (Isat): 24A
- Shielding: Unshielded
- DC Resistance (DCR): 6.5mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: AEC-Q200
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.276" L x 0.260" W (7.00mm x 6.60mm)
- Height - Seated (Max): 0.094" (2.40mm)
