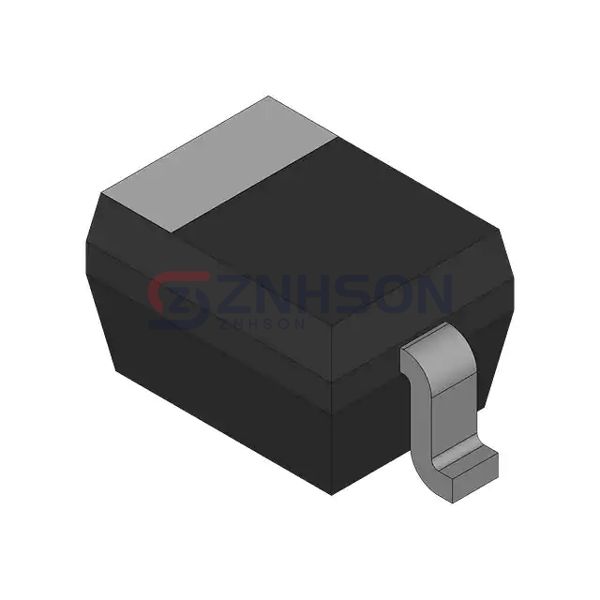

PJSD15W_R1_00001
Panjit International Inc.
Panjit International Inc.
SOD-323, TVS/ESD
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with Panjit International Inc.'s PJSD15W_R1_00001 TVS Diodes, engineered to handle sudden voltage surges effectively. Perfect for telecommunications, power supplies, and data lines, these diodes offer excellent ESD protection and durability. Key features include high power dissipation, compact size, and reliable performance under extreme conditions. Trust Panjit International Inc. for top-tier circuit protection solutions. Ready to secure your electronics? Submit an inquiry now!
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 15V (Max)
- Voltage - Breakdown (Min): 16.7V
- Voltage - Clamping (Max) @ Ipp: 24V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 350W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 120pF @ 1MHz
- Operating Temperature: -50°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323
