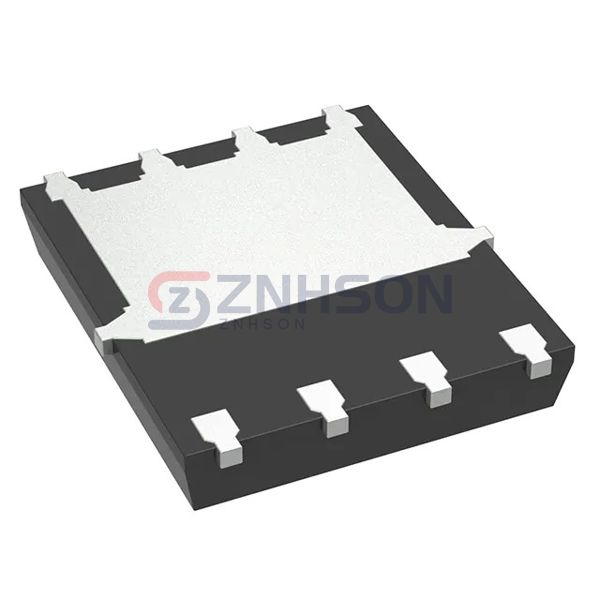

PJQ5476AL_R2_00001
Panjit International Inc.
Panjit International Inc.
100V N-CHANNEL ENHANCEMENT MODE
$0.98
Available to order
Reference Price (USD)
1+
$0.98000
500+
$0.9702
1000+
$0.9604
1500+
$0.9506
2000+
$0.9408
2500+
$0.931
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with PJQ5476AL_R2_00001 by Panjit International Inc., a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, PJQ5476AL_R2_00001 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 6.5A (Ta), 42A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 25Ohm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1519 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 83W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
