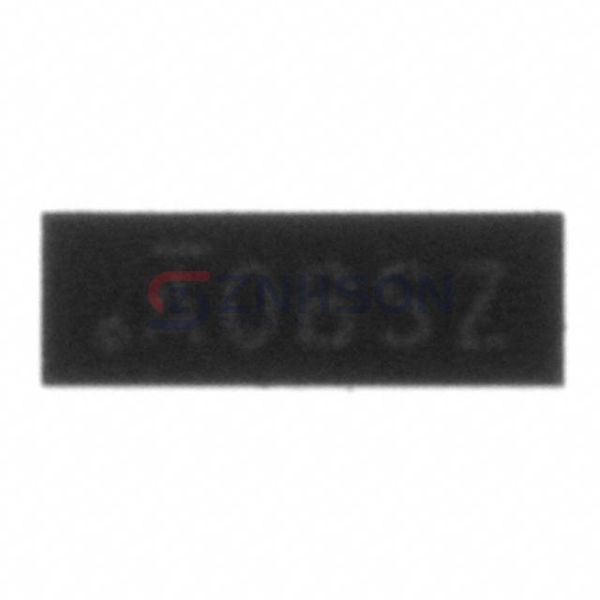

PI5A4158ZAEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH DUAL SPDT 12TDFN
$0.00
Available to order
Reference Price (USD)
3,500+
$0.17500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Diodes Incorporated PI5A4158ZAEX series of Analog Switches, Multiplexers, and Demultiplexers offers precision and reliability for critical signal routing tasks. Ideal for automotive, aerospace, and telecommunications applications, these ICs ensure low on-resistance and high bandwidth performance. Simplify your circuit design with our robust Interface solutions. For pricing and availability, reach out to our sales team today and experience the Diodes Incorporated difference.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 1.2Ohm
- Channel-to-Channel Matching (ΔRon): 10mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 18ns, 20ns
- -3db Bandwidth: 150MHz
- Charge Injection: 35pC
- Channel Capacitance (CS(off), CD(off)): 3.5pF
- Current - Leakage (IS(off)) (Max): 20nA
- Crosstalk: -70dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFDFN
- Supplier Device Package: 12-TDFN (3x1)
