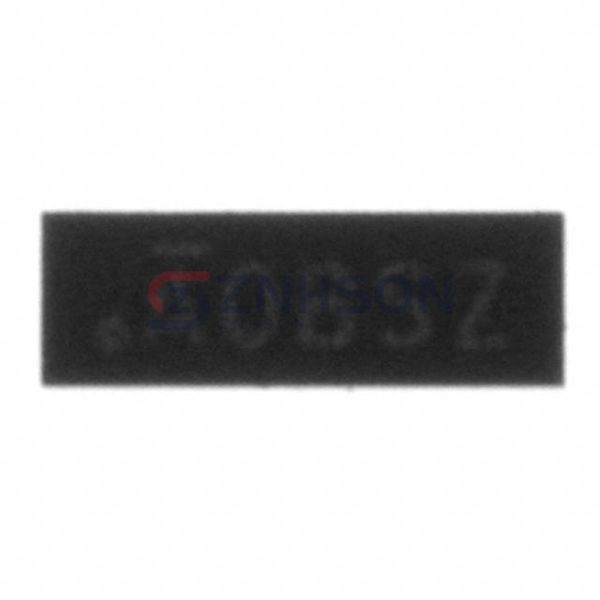

PI5A3158BZAEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH DUAL SPDT 12TDFN
$0.00
Available to order
Reference Price (USD)
3,500+
$0.17500
7,000+
$0.16500
10,500+
$0.15500
24,500+
$0.14800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Diodes Incorporated PI5A3158BZAEX series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Diodes Incorporated's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 11Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 350MHz
- Charge Injection: 5pC
- Channel Capacitance (CS(off), CD(off)): 2.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFDFN
- Supplier Device Package: 12-TDFN (3x1)
