PI5A23157ZUAEX
Diodes Incorporated
Diodes Incorporated
ANALOGSWITCH3V-5VU-QFN1520-10T&R
$0.87
Available to order
Reference Price (USD)
1+
$0.87000
500+
$0.8613
1000+
$0.8526
1500+
$0.8439
2000+
$0.8352
2500+
$0.8265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Diodes Incorporated PI5A23157ZUAEX series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Diodes Incorporated's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 15Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): 1.65V ~ 5.5V
- Switch Time (Ton, Toff) (Max): 12ns, 8ns
- -3db Bandwidth: 220MHz
- Charge Injection: 7pC
- Channel Capacitance (CS(off), CD(off)): 2.8pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -66dB @ 10MHz
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount

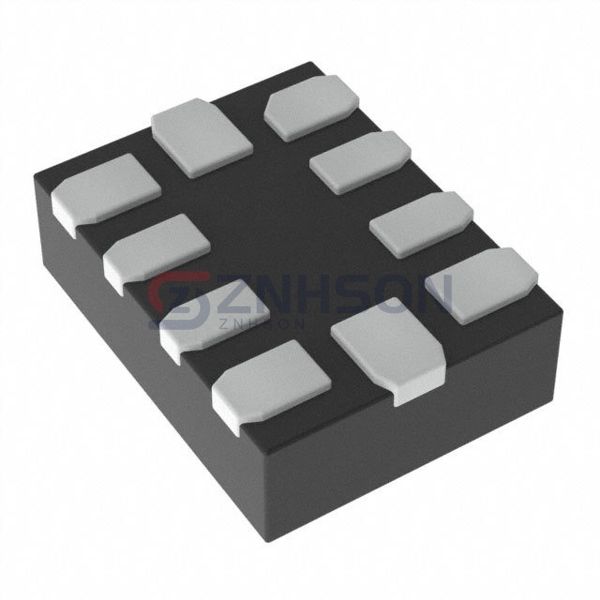

- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.5x2)
