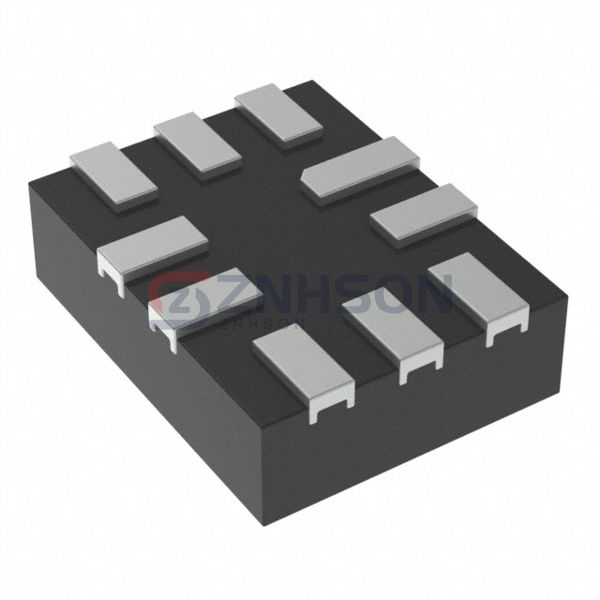

PI3A2268ZMEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH DUAL SPDT 135QFN
$0.00
Available to order
Reference Price (USD)
3,000+
$0.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Diodes Incorporated PI3A2268ZMEX series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Diodes Incorporated's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.2V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 13ns, 12ns
- -3db Bandwidth: 84MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 20pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.4x1.8)
Related Products
onsemi
MC14053BD
Analog Devices Inc./Maxim Integrated
MAX394EWP
Analog Devices Inc.
ADG802BRM-1
Texas Instruments
SN74LV4051ADRG4
Renesas Electronics America Inc
QS4A215Q1G
Renesas Electronics America Inc
ISL5120IBZ
NXP USA Inc.
74HC4067BQ/S510118
Analog Devices Inc.

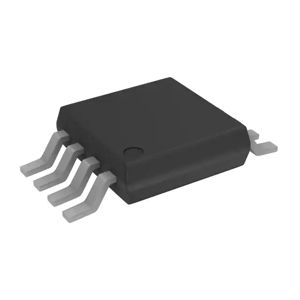

ADG820BRMZ
