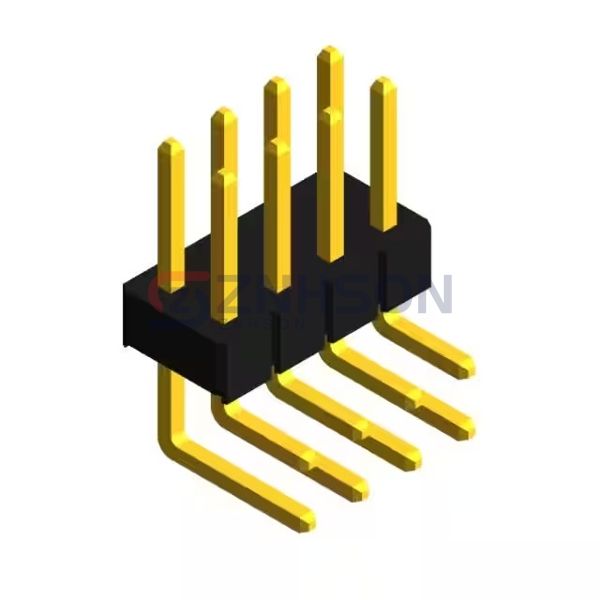

PHED-RS008G1ABOGA-C006
SUPERIOR TECH
SUPERIOR TECH
MALE HEADER RIGHT ANGLE THROUGH
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PHED-RS008G1ABOGA-C006 SUPERIOR TECH Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.236" (6.00mm)
- Overall Contact Length: 0.118" (3.00mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Plastic, Halogen Free
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0026503139
Samtec Inc.
TFC-105-02-L-D-A
Samtec Inc.
TSM-105-03-L-DV-A
TE Connectivity AMP Connectors
102203-6
Molex
0534761510
TE Connectivity AMP Connectors
173081-4
TE Connectivity AMP Connectors
4-794632-4
Molex
2002411116

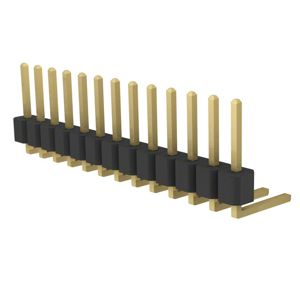

Sullins Connector Solutions
