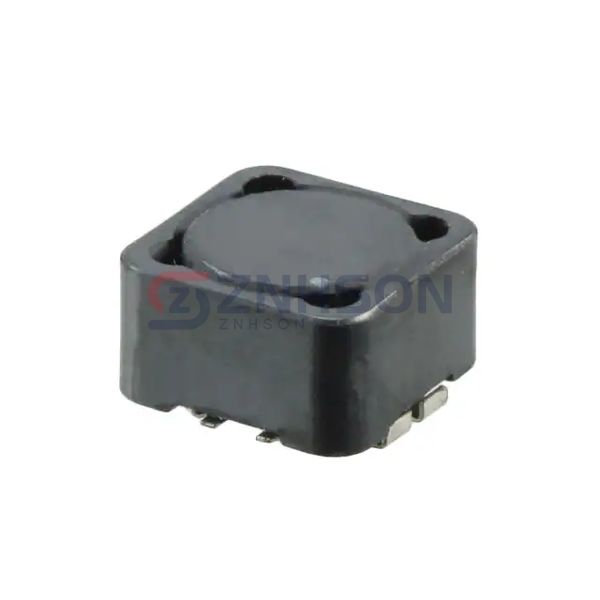

PF0553.822NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 8.9UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0553.822NLT Pulse Electronics Power Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 8.9 µH
- Inductance - Connected In Series: 35 µH
- Tolerance: ±20%
- Current Rating - Parallel: 6.2 A
- Current Rating - Series: 3.1 A
- Current Saturation - Parallel: 12 A
- Current Saturation - Series: 6.1 A
- DC Resistance (DCR) - Parallel: 15mOhm Max
- DC Resistance (DCR) - Series: 62mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.315" (8.00mm)
