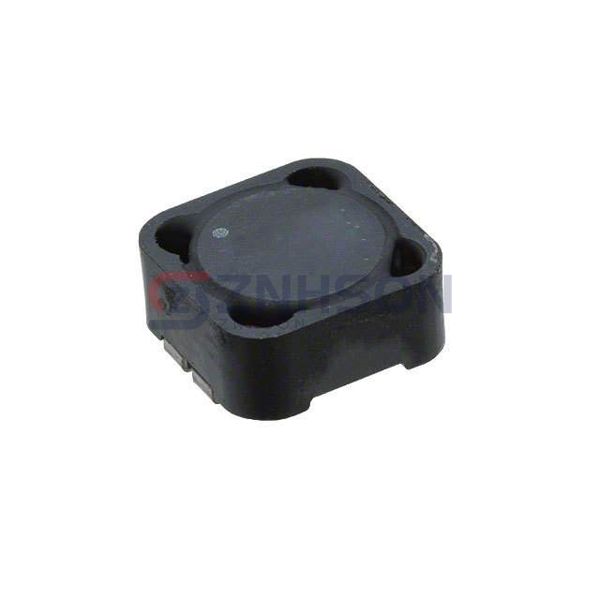

PF0552.224NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 220UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0552.224NLT Pulse Electronics Power Inductors, Coils, and Chokes deliver exceptional performance in Arrays and Signal Transformers applications. With features like high current handling and minimal signal distortion, they are ideal for audio, video, and data transmission systems. Ready to take your projects to the next level? Request a sample or inquire about bulk pricing today!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 220 µH
- Inductance - Connected In Series: 870 µH
- Tolerance: ±20%
- Current Rating - Parallel: 1.4 A
- Current Rating - Series: 710 mA
- Current Saturation - Parallel: 1.5 A
- Current Saturation - Series: 760 mA
- DC Resistance (DCR) - Parallel: 350mOhm Max
- DC Resistance (DCR) - Series: 1.4Ohm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
Related Products
COILCRAFT
MSD1278H-474KED
COILCRAFT
MSD1278H-183MED
Pulse Electronics Power
PF0553.474NLT
Eaton - Electronics Division
CTX10-5P-R
Eaton - Electronics Division
CTX8-2A-R

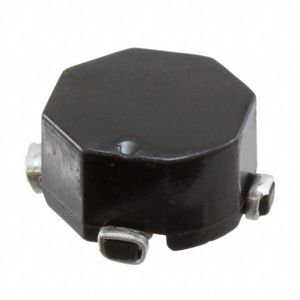

Signal Transformer
SCX147-1R8

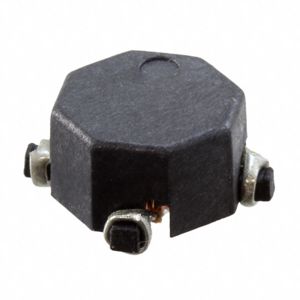

Signal Transformer
SCX114-9R6

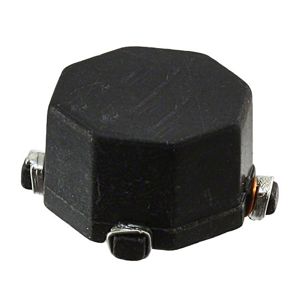

Eaton - Electronics Division
CTX1-2A-R

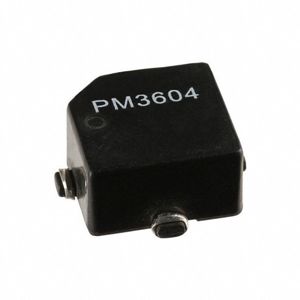

Bourns Inc.
