PEC33DAEN
Sullins Connector Solutions
Sullins Connector Solutions

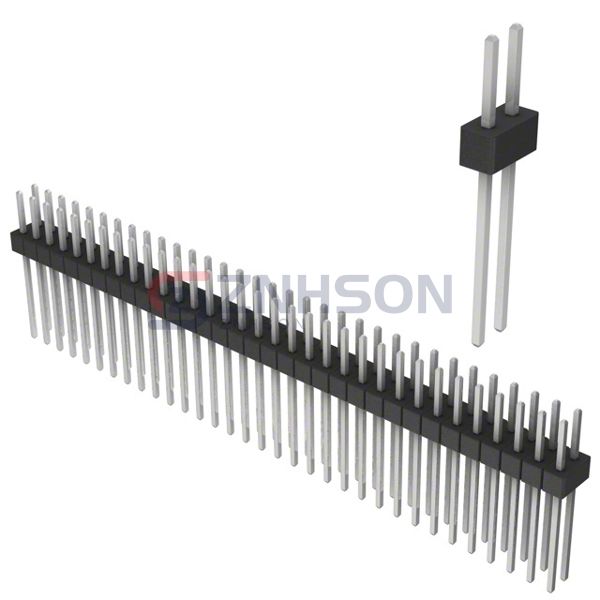

CONN HEADER VERT 66POS 2.54MM
$6.13
Available to order
Reference Price (USD)
1+
$6.13000
10+
$5.88700
25+
$5.39680
50+
$5.15140
100+
$4.90600
250+
$4.29276
500+
$4.17010
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with PEC33DAEN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Sullins Connector Solutions has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
