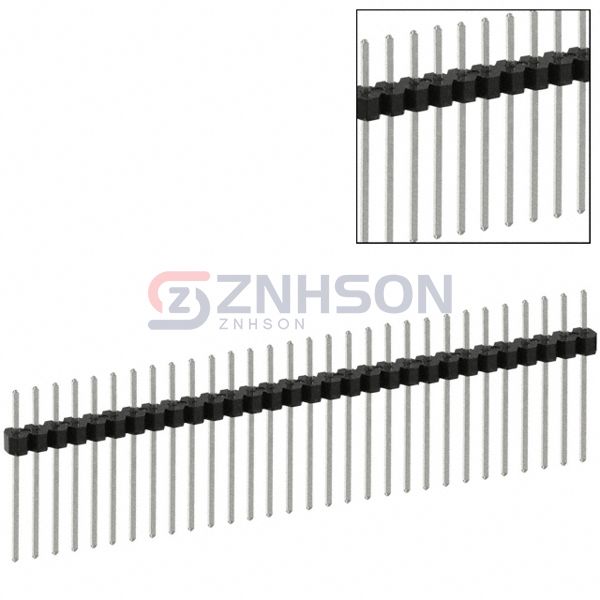

PEC31SAFN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 31POS 2.54MM
$3.54
Available to order
Reference Price (USD)
1+
$3.54000
10+
$3.39800
25+
$3.11440
50+
$2.97300
100+
$2.83130
250+
$2.47744
500+
$2.40664
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality PEC31SAFN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, designed for reliable and secure connections in various electronic applications. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for industrial, automotive, and consumer electronics. Whether you need robust headers or precision male pins, our products ensure optimal performance. Contact us today for a quote and let us meet your connectivity needs!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 31
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.620" (15.75mm)
- Overall Contact Length: 0.950" (24.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
