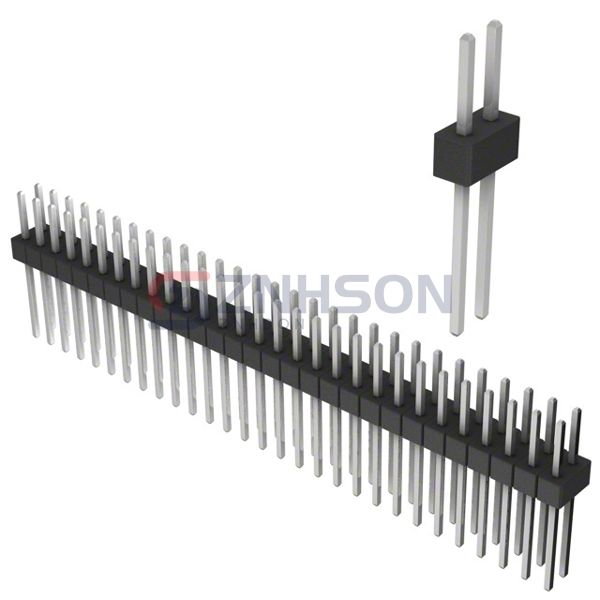

PEC29DADN

Sullins Connector Solutions
PEC29DADN Preview
Sullins Connector Solutions
CONN HEADER VERT 58POS 2.54MM
$5.03
Available to order
Reference Price (USD)
1+
$5.03000
10+
$4.82600
25+
$4.42360
50+
$4.22240
100+
$4.02130
250+
$3.51868
500+
$3.41814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 58
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.420" (10.67mm)
  • Overall Contact Length: 0.750" (19.05mm)
  • Insulation Height: 0.100" (2.54mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0µin (2.54µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -65°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -

Related Products

Mill-Max Manufacturing Corp.

800-10-011-62-001000

TE Connectivity AMP Connectors

146132-6

Amphenol ICC (FCI)

68764-409

TE Connectivity AMP Connectors

5-146277-8

Mill-Max Manufacturing Corp.

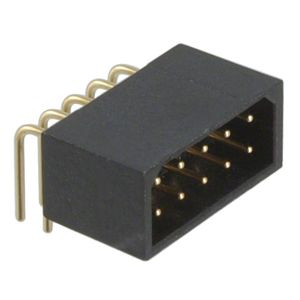

832-10-010-20-052000

Harwin Inc.

M80-5431805

Hirose Electric Co Ltd

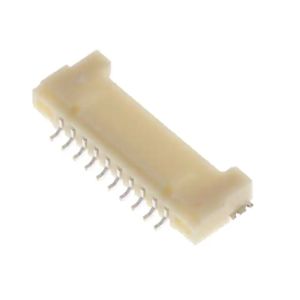

DF14A-10P-1.25H(35)
