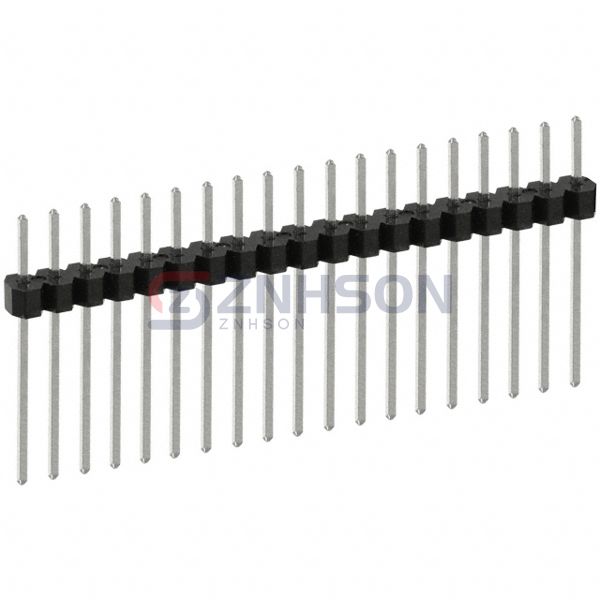

PEC19SAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 19POS 2.54MM
$2.58
Available to order
Reference Price (USD)
1+
$2.58000
10+
$2.34300
25+
$2.19960
50+
$2.10400
100+
$2.00830
250+
$1.81704
500+
$1.67358
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC19SAHN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 19
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
54102-T30-00
Preci-Dip
800-10-017-30-480101
Samtec Inc.
ZSS-105-03-S-D-725
Samtec Inc.
ZSS-113-05-L-D-915-LL
3M
929836-05-21
Samtec Inc.
TSM-110-01-LM-DH-P-TR
Samtec Inc.
TSM-107-01-SM-DV-A-P

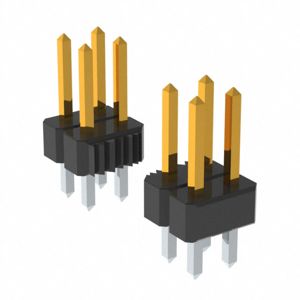

Sullins Connector Solutions
GBC05DAAN

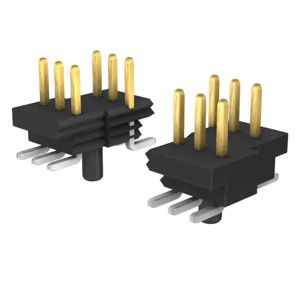

Samtec Inc.
