PEC18DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 36POS 2.54MM
$4.82
Available to order
Reference Price (USD)
1+
$4.82000
10+
$4.62200
25+
$4.23720
50+
$4.04460
100+
$3.85200
250+
$3.37052
500+
$3.27420
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC18DAHN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
CNC Tech
3010-16-001-13-00
TE Connectivity AMP Connectors
5-146132-4
TE Connectivity AMP Connectors
1-206763-1
Samtec Inc.
FTS-113-01-FM-DV
Samtec Inc.
EHT-112-01-S-D-SM-P
TE Connectivity AMP Connectors
1-178141-5
TE Connectivity AMP Connectors
9-146274-0-31
Harwin Inc.

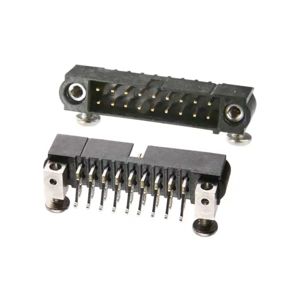

M80-5434205
