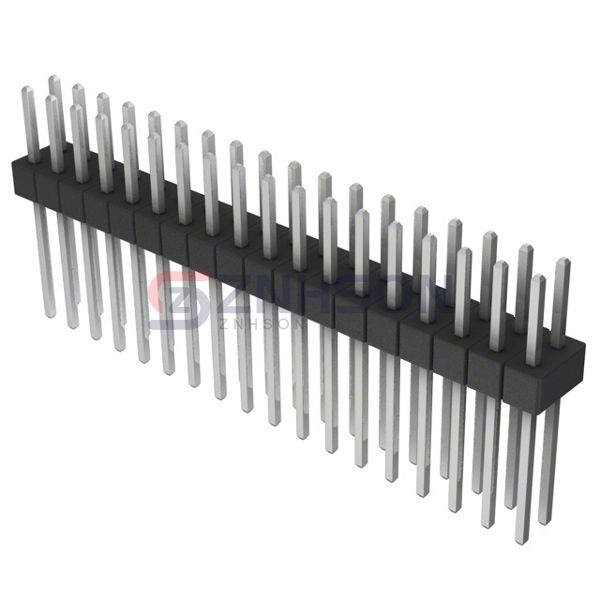

PEC18DADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 36POS 2.54MM
$3.12
Available to order
Reference Price (USD)
1+
$3.12000
10+
$2.99500
25+
$2.74560
50+
$2.62080
100+
$2.49600
250+
$2.18400
500+
$2.12160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PEC18DADN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 36
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-150-17-T-D
Mill-Max Manufacturing Corp.
852-40-018-30-001000
Preci-Dip
350-80-110-00-106101
HARTING
09185505903
Amphenol ICC (FCI)
861400082LO1332LF
JAE Electronics
MX34R08HF4T
TE Connectivity AMP Connectors

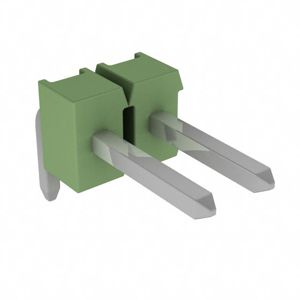

826949-2
Amphenol ICC (FCI)
77311-115-03LF
Molex

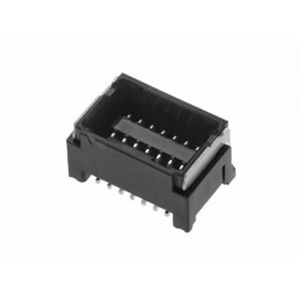

5054330891
