PEC14DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 28POS 2.54MM
$3.75
Available to order
Reference Price (USD)
1+
$3.75000
10+
$3.59500
25+
$3.29560
50+
$3.14580
100+
$2.99600
250+
$2.62152
500+
$2.54660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC14DAHN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-122-19LF
Molex
0015911720
Samtec Inc.
TSM-110-04-T-SV

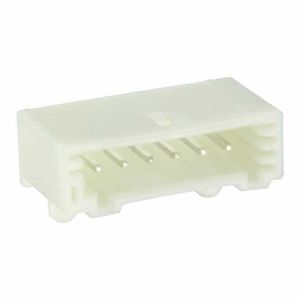

TE Connectivity AMP Connectors
936287-2
Preci-Dip
350-80-146-00-206101

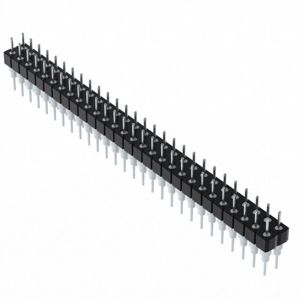

Samtec Inc.
BBD-128-T-A

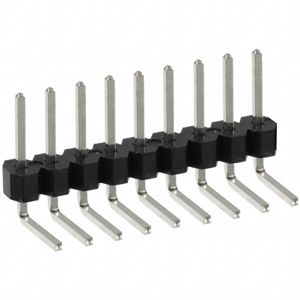

Sullins Connector Solutions
PEC09SBBN

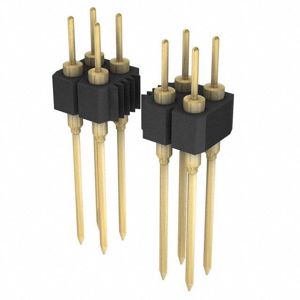

Preci-Dip
453-10-244-00-001101

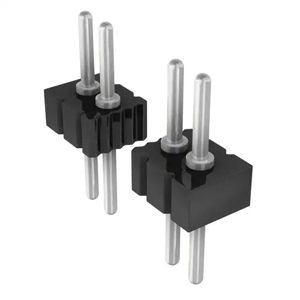

Preci-Dip
