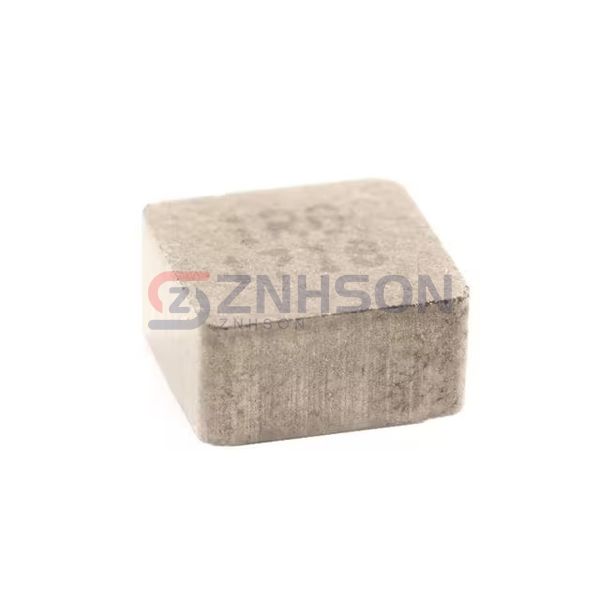

PCXA503-R56M
Allied Components International
Allied Components International
.56uH 20% Shielded High Current
$0.98
Available to order
Reference Price (USD)
1+
$0.98000
500+
$0.9702
1000+
$0.9604
1500+
$0.9506
2000+
$0.9408
2500+
$0.931
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust PCXA503-R56M Fixed Inductors by Allied Components International for all your high-performance needs. These inductors are built with high thermal conductivity, superior magnetic shielding, and long-lasting durability, perfect for medical imaging, defense systems, and industrial automation. PCXA503-R56M guarantees excellence. Looking for custom solutions? Submit your inquiry and let s collaborate!
Specifications
- Product Status: Active
- Type: Wirewound
- Material - Core: -
- Inductance: 560 nH
- Tolerance: ±20%
- Current Rating (Amps): 17.7 A
- Current - Saturation (Isat): 20.2A
- Shielding: Shielded
- DC Resistance (DCR): 4.52mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: -
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.217" L x 0.209" W (5.50mm x 5.30mm)
- Height - Seated (Max): 0.122" (3.10mm)
