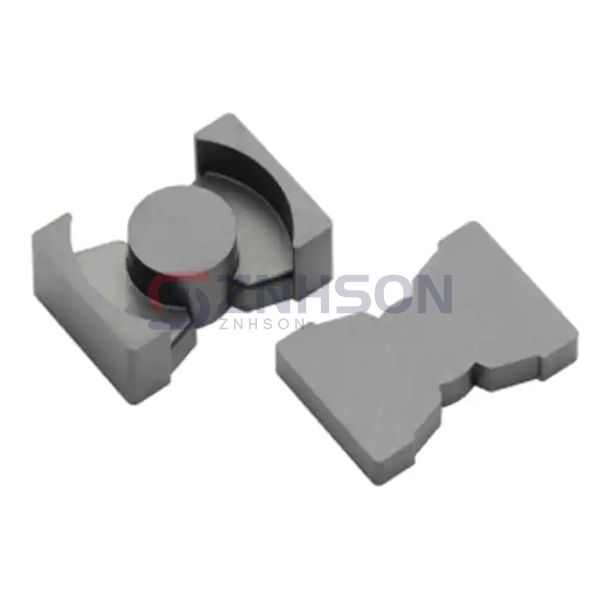

PC95PQI26/12Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQI 11.95UH 1SET
$4.25
Available to order
Reference Price (USD)
1+
$4.05000
10+
$3.45000
25+
$2.62520
50+
$2.55000
180+
$2.25000
360+
$2.10000
540+
$1.95000
1,080+
$1.87500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC95PQI26/12Z-12 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: HPQ, PQD
- Supplier Device Package: PQI 26 x 12
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 11.95 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.22
- Effective Length (le) mm: 123
- Effective Area (Ae) mm²: 27.7
- Minimum Core Cross Section (Amin) mm²: 109
- Effective Magnetic Volume (Ve) mm³: 3410
- Finish: Uncoated
- Height: 0.287" (7.30mm)
- Length: 1.043" (26.50mm)
- Width: 0.748" (19.00mm)
