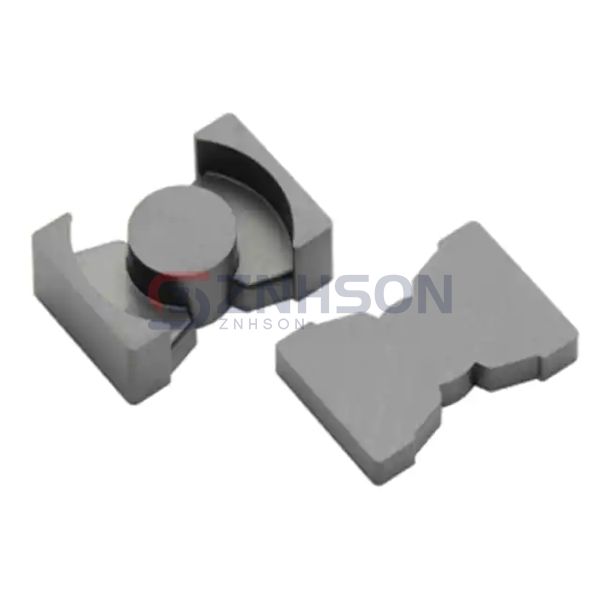

PC95PQI16/7.8Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQI 4.91UH 1SET
$2.28
Available to order
Reference Price (USD)
1+
$2.18000
10+
$1.87500
25+
$1.42520
50+
$1.35000
100+
$1.20000
400+
$1.12500
800+
$1.05000
1,200+
$0.96375
5,200+
$0.93750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with TDK Corporation PC95PQI16/7.8Z-12 Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: HPQ, PQD
- Supplier Device Package: PQI 16 x 7.8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 4.91 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 41.8
- Effective Area (Ae) mm²: 19.5
- Minimum Core Cross Section (Amin) mm²: 37.6
- Effective Magnetic Volume (Ve) mm³: 815
- Finish: Uncoated
- Height: 0.213" (5.40mm)
- Length: 0.646" (16.40mm)
- Width: 0.441" (11.20mm)
