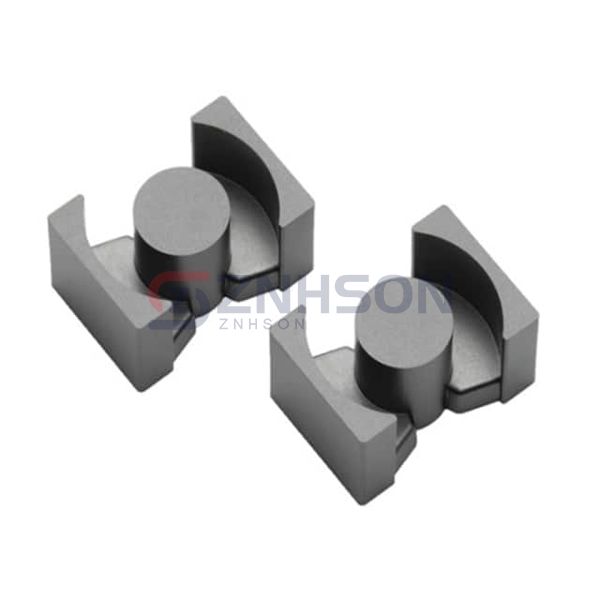

PC95PQ26/25Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 6.52UH 2PC SET
$8.39
Available to order
Reference Price (USD)
1+
$7.99000
10+
$6.80800
25+
$5.18000
50+
$5.03200
160+
$4.44000
320+
$4.14400
640+
$3.84800
1,120+
$3.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with TDK Corporation PC95PQ26/25Z-12 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 26 x 25
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.52 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 55.5
- Effective Area (Ae) mm²: 118
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6530
- Finish: Uncoated
- Height: 0.974" (24.75mm)
- Length: 1.043" (26.50mm)
- Width: 0.748" (19.00mm)
