PC95EL25X8.6-Z
TDK Corporation
TDK Corporation

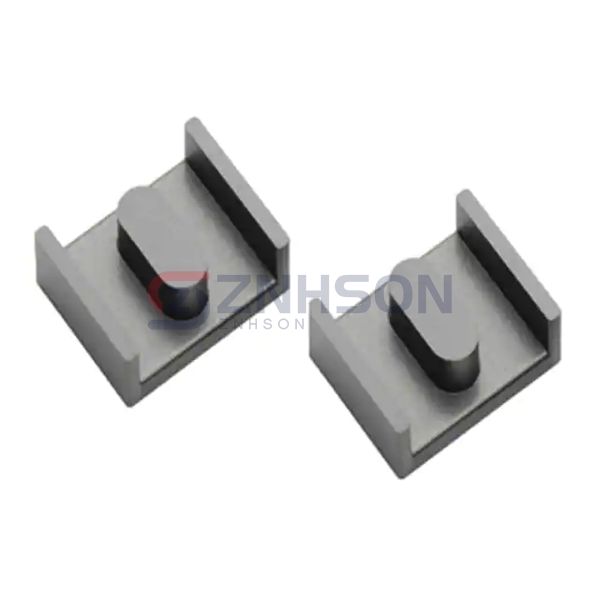

FERRITE CORE EL 7.54UH 2PC SET
$2.61
Available to order
Reference Price (USD)
1+
$2.61000
10+
$2.25000
25+
$1.71000
50+
$1.62000
100+
$1.44000
288+
$1.35000
576+
$1.26000
1,152+
$1.15650
5,184+
$1.12500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium TDK Corporation PC95EL25X8.6-Z Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EL 25 x 8.6
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7.54 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.35
- Effective Length (le) mm: 30
- Effective Area (Ae) mm²: 85.6
- Minimum Core Cross Section (Amin) mm²: 83
- Effective Magnetic Volume (Ve) mm³: 2570
- Finish: Uncoated
- Height: 0.169" (4.29mm)
- Length: 0.984" (25.00mm)
- Width: 0.787" (20.00mm)
