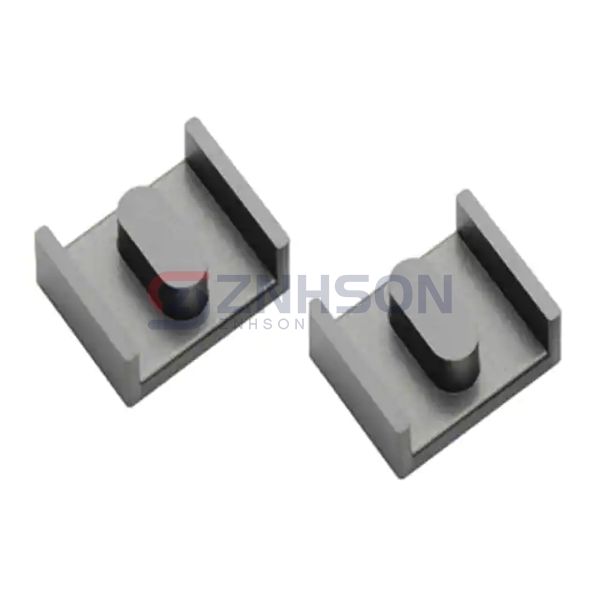

PC95EL11X4-Z
TDK Corporation
TDK Corporation
FERRITE CORE EL 2.4UH 2PC SET
$1.10
Available to order
Reference Price (USD)
1+
$1.05000
10+
$0.94500
25+
$0.70000
50+
$0.66500
100+
$0.59500
250+
$0.56000
540+
$0.52500
1,080+
$0.45500
5,400+
$0.43750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with TDK Corporation PC95EL11X4-Z Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EL 11 x 4
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 2.4 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.83
- Effective Length (le) mm: 16.5
- Effective Area (Ae) mm²: 13.7
- Minimum Core Cross Section (Amin) mm²: 15.9
- Effective Magnetic Volume (Ve) mm³: 226
- Finish: Uncoated
- Height: 0.079" (2.00mm)
- Length: 0.433" (11.00mm)
- Width: 0.346" (8.80mm)
