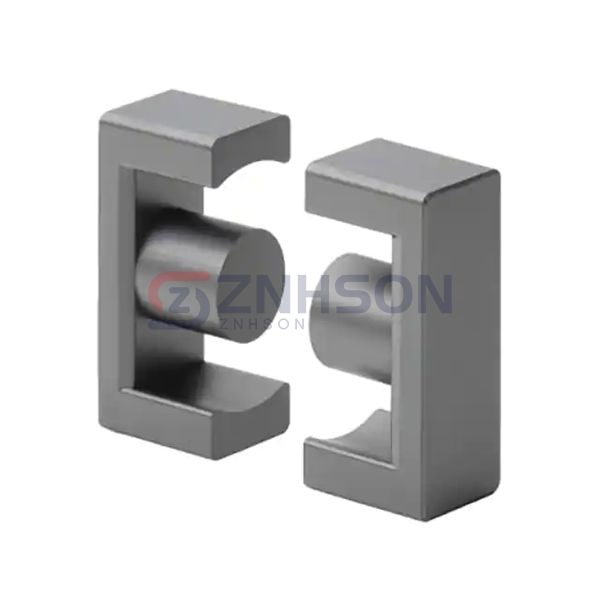

PC47EER35-Z
TDK Corporation
TDK Corporation
FERRITE CORE EER 2.77UH 2PC SET
$5.27
Available to order
Reference Price (USD)
1+
$5.02000
10+
$4.27800
25+
$3.25520
80+
$3.16200
160+
$2.79000
320+
$2.60400
560+
$2.41800
1,040+
$2.32500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium TDK Corporation PC47EER35-Z Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: EER 35
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 2.77 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.85
- Effective Length (le) mm: 90.8
- Effective Area (Ae) mm²: 107
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 9720
- Finish: Uncoated
- Height: 0.815" (20.70mm)
- Length: 1.378" (35.00mm)
- Width: 0.445" (11.30mm)
