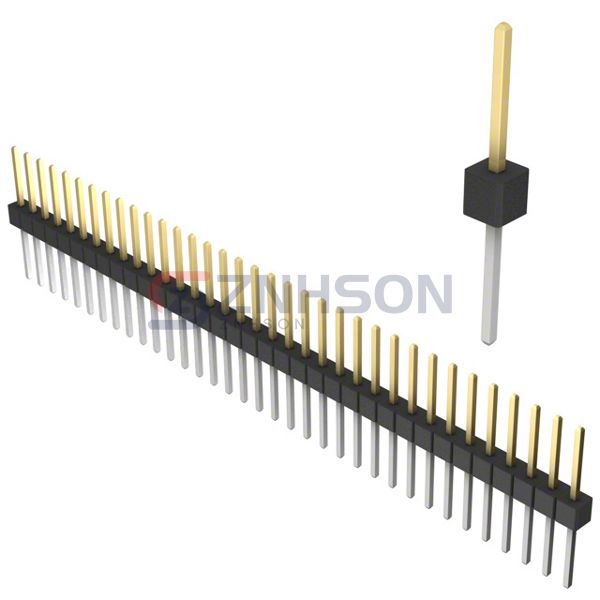

PBC35SFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 35POS 2.54MM
$4.00
Available to order
Reference Price (USD)
1+
$4.00000
10+
$3.83600
25+
$3.51640
50+
$3.35640
100+
$3.19670
250+
$2.79708
500+
$2.71716
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PBC35SFCN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-140-02-L-DV
Sullins Connector Solutions
GEC25SGSN-M89
Samtec Inc.
TMM-104-05-G-D-SM-TR
Samtec Inc.
FTS-140-01-F-DV-P
Samtec Inc.
TMM-110-06-F-S-SM-P
Samtec Inc.

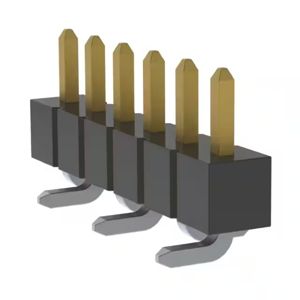

TSM-106-04-L-SV-TR
Amphenol ICC (FCI)

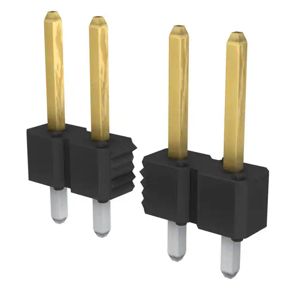

77311-801-15LF
Samtec Inc.

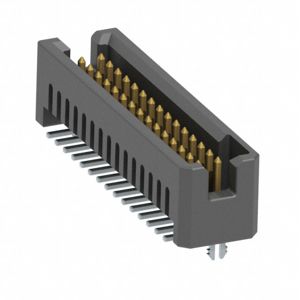

TFM-115-02-SM-D-LC
