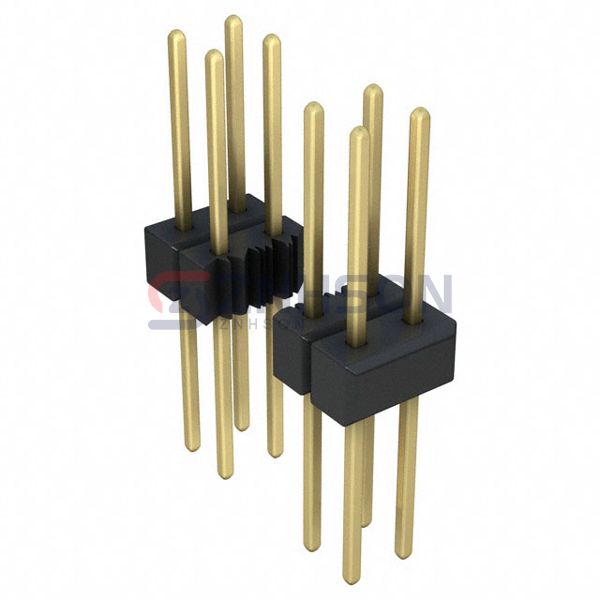

PBC19DFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 38POS 2.54MM
$3.77
Available to order
Reference Price (USD)
1+
$3.77000
10+
$3.61800
25+
$3.31600
50+
$3.16540
100+
$3.01470
250+
$2.63784
500+
$2.56246
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PBC19DFCN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
ZSS-107-07-S-D-1140
Adam Tech
BHR-06-HUA
Samtec Inc.
HTSW-134-07-L-D
Samtec Inc.
TSW-125-26-G-D
Samtec Inc.
ZSS-132-06-L-D-1015

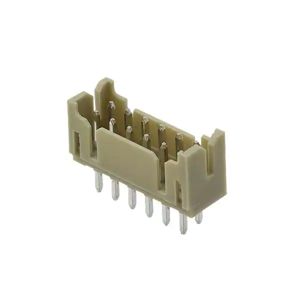

TE Connectivity AMP Connectors
1-1470109-2

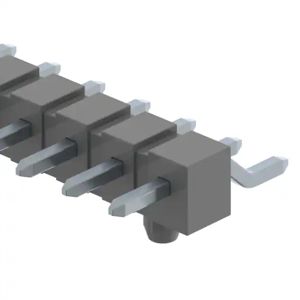

Samtec Inc.
TSM-114-04-T-SH-A-P

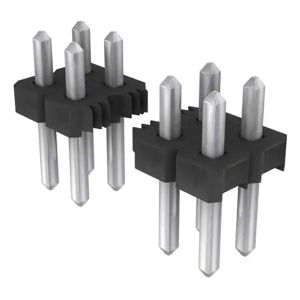

Samtec Inc.
TLW-130-05-T-D

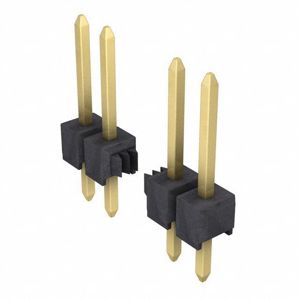

Harwin Inc.
