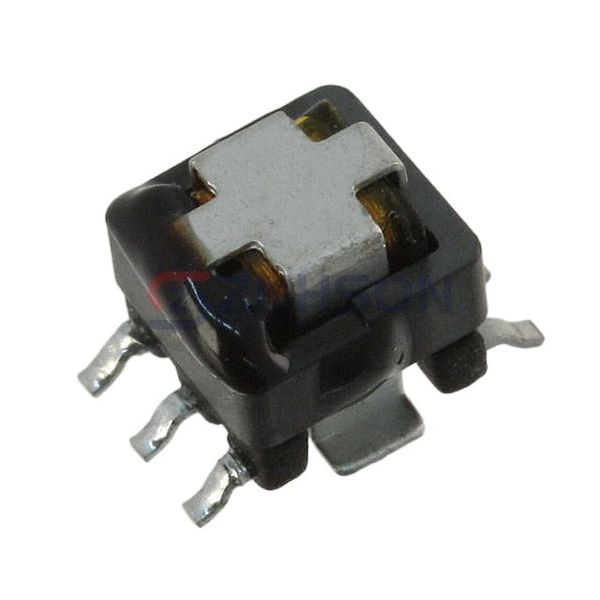

PA1005.070NLT
Pulse Electronics Power
Pulse Electronics Power
CURR SENSE XFMR 1:70 20A SMD
$2.39
Available to order
Reference Price (USD)
900+
$1.23166
1,800+
$1.09020
6,300+
$1.00050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your project's potential with Pulse Electronics Power PA1005.070NLT Current Sense Transformers, featuring cutting-edge technology and superior performance. With attributes like high bandwidth, low hysteresis, and excellent linearity, these transformers are ideal for test and measurement equipment, industrial controls, and telecommunications. Their reliability ensures consistent operation. Contact us today to discuss your requirements and discover how we can support your success.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): 20 A
- Inductance: 980 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:70
- Current Ratio: -
- DC Resistance (DCR): 0.75mOhm Primary, 4.75Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max): 0.217" (5.50mm)
- Termination Style: Gull Wing
