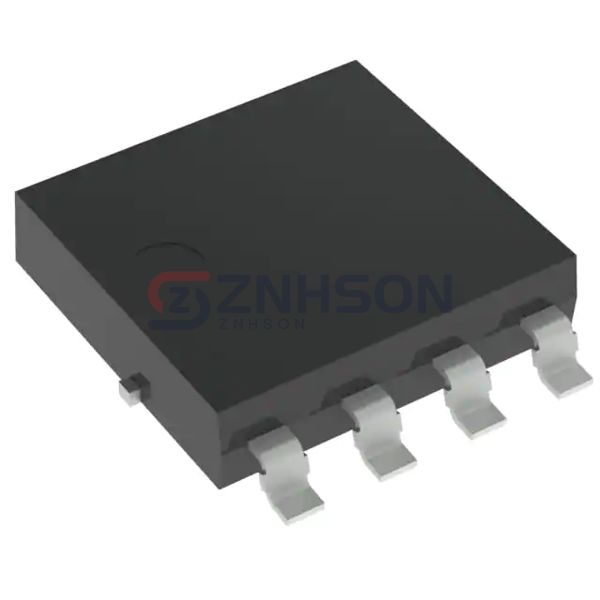

NVMJS1D5N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 38A/200A 8LFPAK
$3.08
Available to order
Reference Price (USD)
1+
$3.08000
500+
$3.0492
1000+
$3.0184
1500+
$2.9876
2000+
$2.9568
2500+
$2.926
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with NVMJS1D5N04CLTWG by onsemi, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, NVMJS1D5N04CLTWG ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Ta), 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 130µA
- Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4300 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 110W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
