NTLJS1102PTBG
onsemi
onsemi

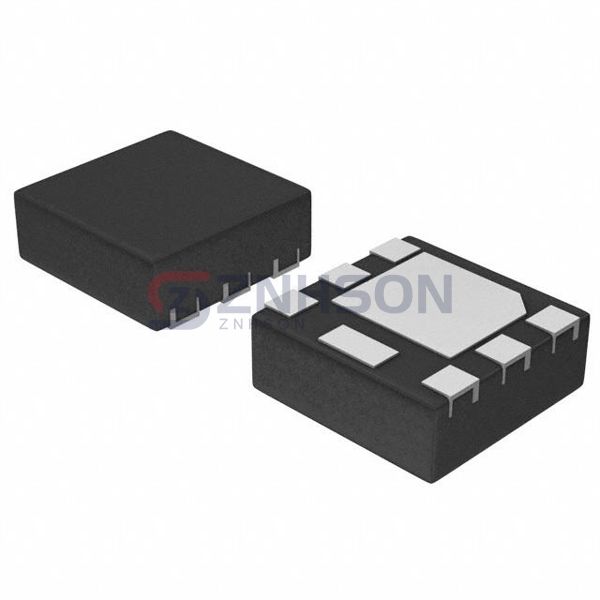

MOSFET P-CH 8V 3.7A 6WDFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover NTLJS1102PTBG, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 3.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.2V, 4.5V
- Rds On (Max) @ Id, Vgs: 36mOhm @ 6.2A, 4.5V
- Vgs(th) (Max) @ Id: 720mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±6V
- Input Capacitance (Ciss) (Max) @ Vds: 1585 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WDFN (2x2)
- Package / Case: 6-WDFN Exposed Pad
