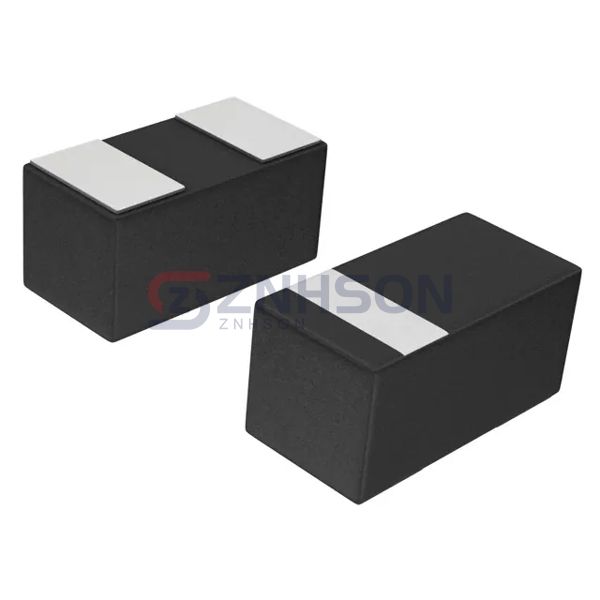

NSR05402NXT5G
onsemi
onsemi
0201 FLIP CHIP SCHOTTKY D
$0.00
Available to order
Reference Price (USD)
5,000+
$0.06615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with onsemi's NSR05402NXT5G Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust onsemi for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 500mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 620 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 20 µA @ 40 V
- Capacitance @ Vr, F: 9.5pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 2-DSN (0.60x0.30)
- Operating Temperature - Junction: -55°C ~ 150°C
