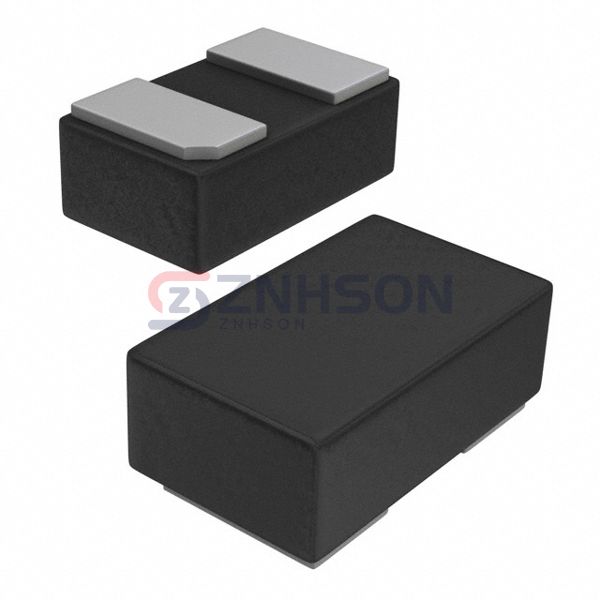

NSR05301MX4T5G
onsemi
onsemi
01005_TRENCH_SCHOTTKY_30V
$0.47
Available to order
Reference Price (USD)
10,000+
$0.06080
30,000+
$0.05700
50,000+
$0.05320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power management systems with NSR05301MX4T5G Single Rectifier Diodes by onsemi. These diodes are crafted for optimal performance in AC/DC conversion, ensuring smooth and efficient operation. Ideal for use in power adapters, LED drivers, and motor controls, they feature high current capacity, low VF, and excellent thermal stability. onsemi's commitment to quality means you get dependable components every time. Interested? Get in touch for pricing and availability!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 500mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 11 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 30 V
- Capacitance @ Vr, F: 19pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 01005 (0402 Metric)
- Supplier Device Package: 2-X4DFN (0.45x0.24)
- Operating Temperature - Junction: -55°C ~ 125°C
Related Products
Vishay General Semiconductor - Diodes Division
LS101C-GS08
Vishay General Semiconductor - Diodes Division
VS-10ETF12SLHM3
Solid State Inc.
25FR80
Vishay General Semiconductor - Diodes Division
V8PAM10HM3/I
Nexperia USA Inc.
BAS521,135
Fairchild Semiconductor
RURD420S9A
STMicroelectronics

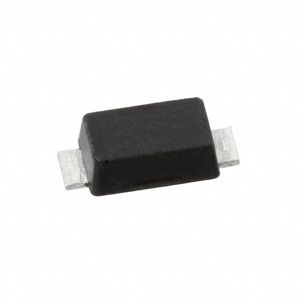

STPS1L60ZFY
onsemi

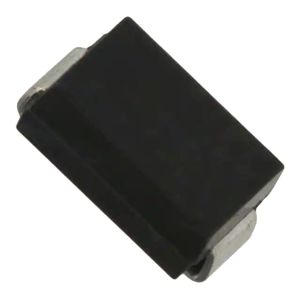

US2GA
