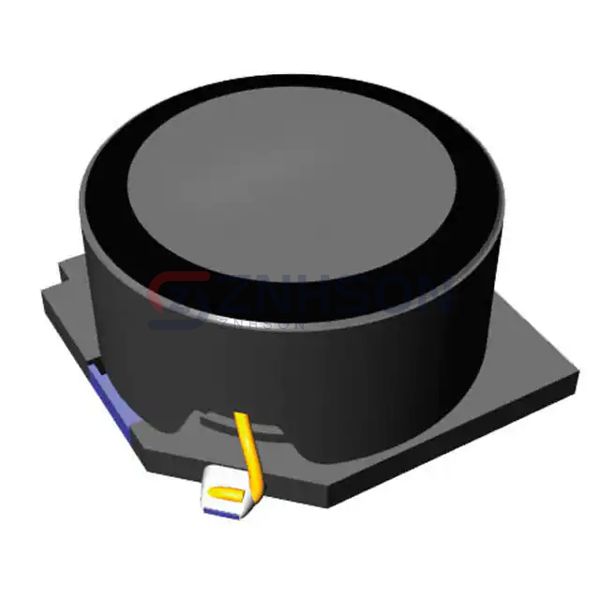

NS12565T220MNV
Taiyo Yuden
Taiyo Yuden
FIXED IND 22UH 3.91A 37.2MOHM SM
$1.79
Available to order
Reference Price (USD)
1+
$1.79000
500+
$1.7721
1000+
$1.7542
1500+
$1.7363
2000+
$1.7184
2500+
$1.7005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with NS12565T220MNV Fixed Inductors from Taiyo Yuden, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. NS12565T220MNV ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ferrite
- Inductance: 22 µH
- Tolerance: ±20%
- Current Rating (Amps): 3.91 A
- Current - Saturation (Isat): 4.2A
- Shielding: Shielded
- DC Resistance (DCR): 37.2mOhm Max
- Q @ Freq: -
- Frequency - Self Resonant: 12.5MHz
- Ratings: AEC-Q200
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 100 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height - Seated (Max): 0.270" (6.85mm)
