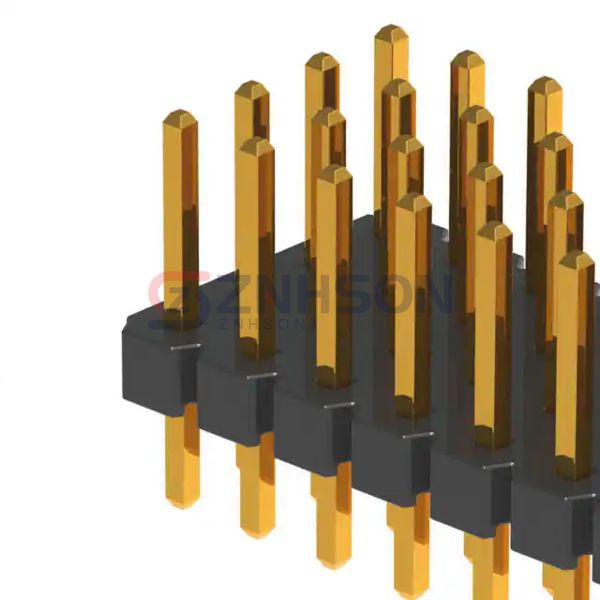

NRPN274RCCN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 108POS 2MM
$3.68
Available to order
Reference Price (USD)
1+
$3.68420
500+
$3.647358
1000+
$3.610516
1500+
$3.573674
2000+
$3.536832
2500+
$3.49999
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NRPN274RCCN-RC Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 108
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.173" (4.40mm)
- Contact Length - Post: 0.094" (2.40mm)
- Overall Contact Length: 0.327" (8.30mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
