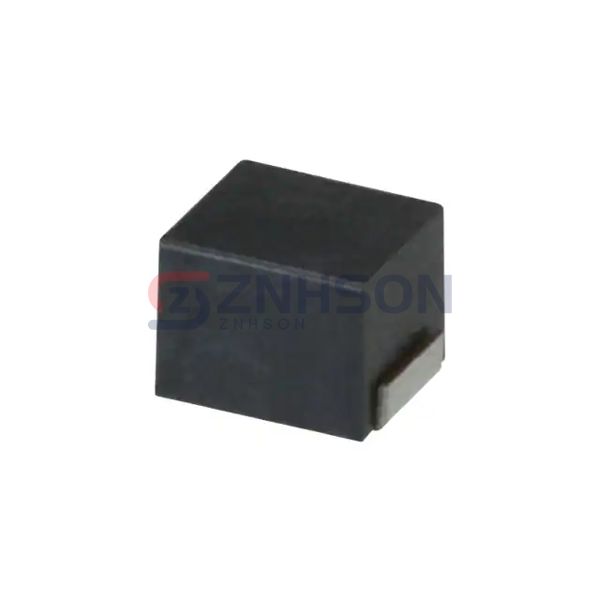

NLV25T-220J-EF
TDK Corporation
TDK Corporation
FIXED IND 22UH 125MA 5.5 OHM SMD
$0.25
Available to order
Reference Price (USD)
1+
$0.25000
500+
$0.2475
1000+
$0.245
1500+
$0.2425
2000+
$0.24
2500+
$0.2375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with NLV25T-220J-EF Fixed Inductors from TDK Corporation, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. NLV25T-220J-EF ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ferrite
- Inductance: 22 µH
- Tolerance: ±5%
- Current Rating (Amps): 125 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 5.5Ohm Max
- Q @ Freq: 25 @ 2.52MHz
- Frequency - Self Resonant: 22MHz
- Ratings: -
- Operating Temperature: -40°C ~ 105°C
- Inductance Frequency - Test: 2.52 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008 (2520 Metric)
- Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max): 0.075" (1.90mm)
