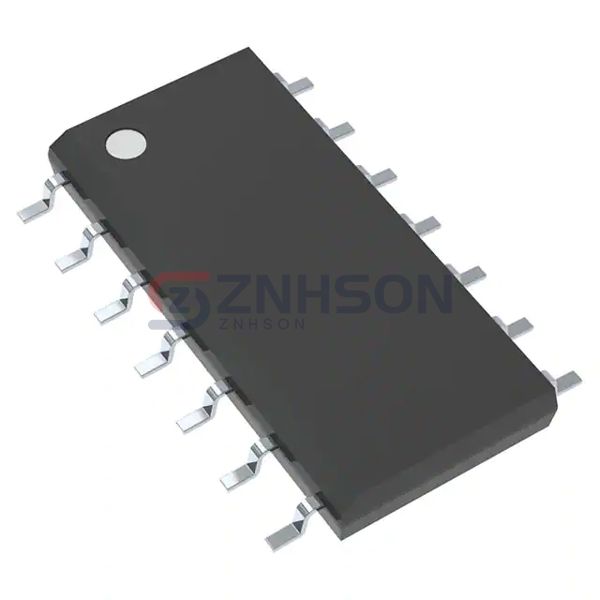

NLV14013BDR2G
onsemi
onsemi
IC FF D-TYPE DUAL 1BIT 14SOIC
$0.21
Available to order
Reference Price (USD)
2,500+
$0.23018
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's NLV14013BDR2G Logic Flip Flops set the standard for digital integration. Offering daisy-chain capability, power-down protection, and radiation-hardened variants, these ICs address complex timing challenges in defense and satellite systems. Partner with us for customized solutions - start your RFQ process now!
Specifications
- Product Status: Active
- Function: Set(Preset) and Reset
- Type: D-Type
- Output Type: Complementary
- Number of Elements: 2
- Number of Bits per Element: 1
- Clock Frequency: 14 MHz
- Max Propagation Delay @ V, Max CL: 100ns @ 15V, 50pF
- Trigger Type: Positive Edge
- Current - Output High, Low: 8.8mA, 8.8mA
- Voltage - Supply: 3V ~ 18V
- Current - Quiescent (Iq): 4 µA
- Input Capacitance: 5 pF
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
