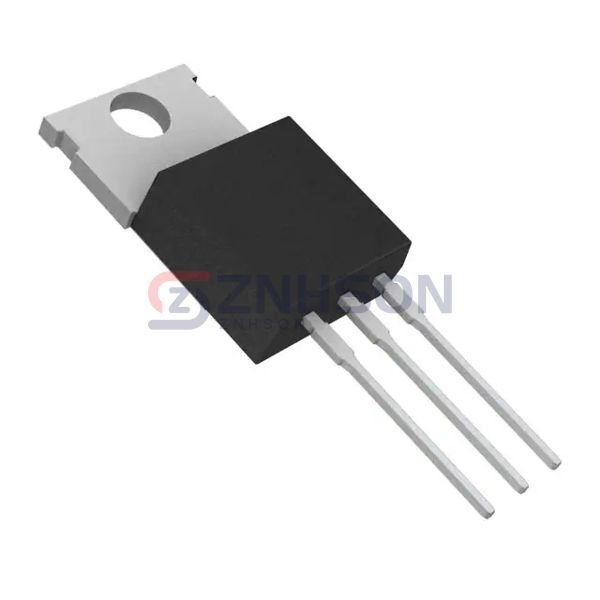

NGTG15N60S1EG
onsemi
onsemi
IGBT NPT 600V 30A TO220
$0.00
Available to order
Reference Price (USD)
1+
$1.46000
50+
$1.24240
100+
$1.02710
500+
$0.85486
1,000+
$0.68265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with NGTG15N60S1EG Single IGBTs from onsemi, built for high-power applications. Perfect for wind turbines, traction systems, and power tools, these transistors provide reliable performance under extreme conditions. Features like overcurrent protection and high-temperature operation ensure safety and efficiency. onsemi's expertise guarantees top-tier components for your critical projects. Reach out today for competitive pricing and technical details!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 15A
- Power - Max: 117 W
- Switching Energy: 550µJ (on), 350µJ (off)
- Input Type: Standard
- Gate Charge: 88 nC
- Td (on/off) @ 25°C: 65ns/170ns
- Test Condition: 400V, 15A, 22Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
