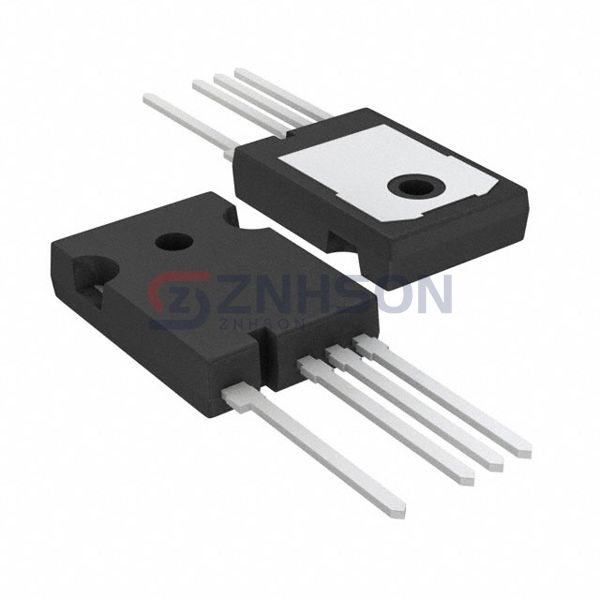

NGTB40N120FL2WAG
onsemi
onsemi
IGBT FIELD STOP 1200V 160A TO247
$0.00
Available to order
Reference Price (USD)
1+
$5.51000
30+
$4.67767
120+
$4.05408
510+
$3.45114
1,020+
$2.91060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose NGTB40N120FL2WAG Single IGBTs by onsemi for superior power handling in demanding environments. From railway systems to industrial drives, these transistors excel with features like avalanche ruggedness and integrated diodes. Their modular design simplifies installation and maintenance. onsemi's reputation for quality makes NGTB40N120FL2WAG a smart investment. Email us now for datasheets and volume discounts!
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 160 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
- Power - Max: 536 W
- Switching Energy: 1.7mJ (on), 1.1mJ (off)
- Input Type: Standard
- Gate Charge: 313 nC
- Td (on/off) @ 25°C: 30ns/145ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 240 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4L
