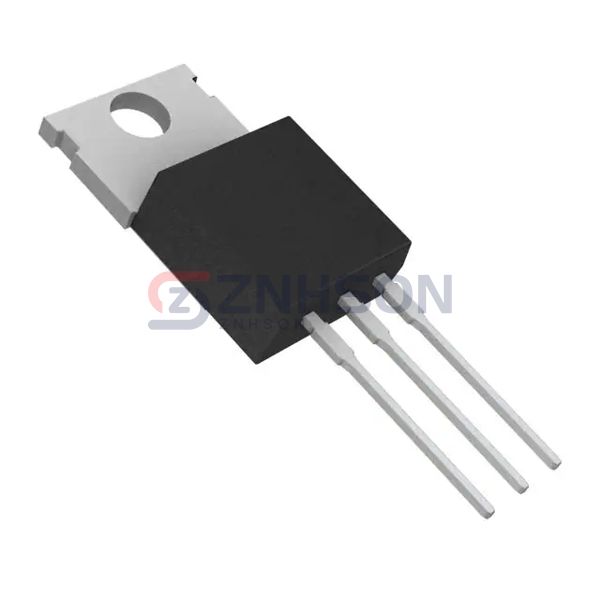

NGTB15N60S1EG
onsemi
onsemi
IGBT 600V 30A 117W TO220-3
$0.00
Available to order
Reference Price (USD)
1+
$1.68000
50+
$1.42540
100+
$1.22150
500+
$1.01194
1,000+
$0.84656
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NGTB15N60S1EG Single IGBT by onsemi is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust onsemi for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 15A
- Power - Max: 117 W
- Switching Energy: 550µJ (on), 350µJ (off)
- Input Type: Standard
- Gate Charge: 88 nC
- Td (on/off) @ 25°C: 65ns/170ns
- Test Condition: 400V, 15A, 22Ohm, 15V
- Reverse Recovery Time (trr): 270 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
Related Products
Infineon Technologies
SGB30N60ATMA1
IXYS
IXGT30N60C2D1
Infineon Technologies
IHW30N60TFKSA1
IXYS
IXGR80N60B
Infineon Technologies
IRG4BC20UD-S
IXYS
IXGH24N60C
IXYS
IXGT20N100
IXYS

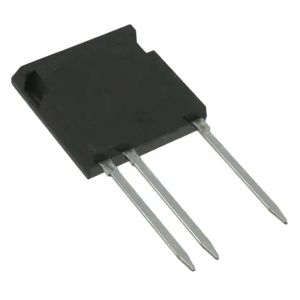

IXBF10N300C
