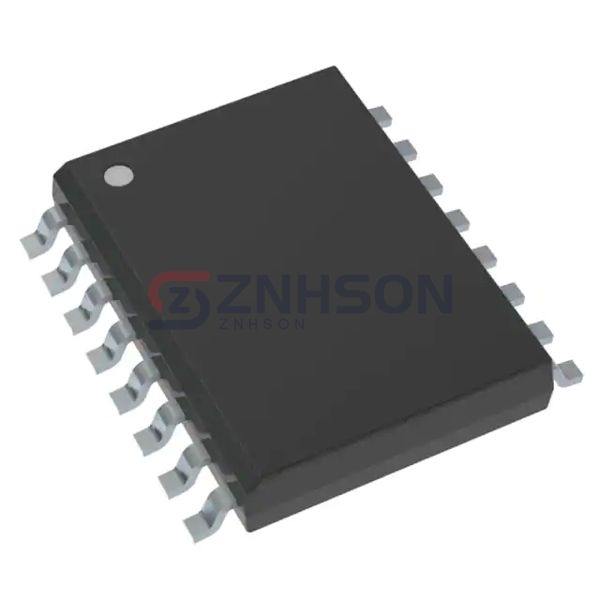

NCID9411R2
onsemi
onsemi
HIGH SPEED QUAD-CHANNEL DIGITAL
$6.56
Available to order
Reference Price (USD)
1+
$6.56000
500+
$6.4944
1000+
$6.4288
1500+
$6.3632
2000+
$6.2976
2500+
$6.232
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with onsemi NCID9411R2 Digital Isolators, delivering superior electrical isolation and signal accuracy. Featuring high common-mode transient immunity, low power dissipation, and multi-channel options, these isolators are ideal for data acquisition, PLCs, and instrumentation. onsemi NCID9411R2 stands for quality and innovation. Want to learn more? Submit your inquiry and we ll respond promptly with the best options!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Type: I²C, SPI
- Isolated Power: No
- Number of Channels: 4
- Inputs - Side 1/Side 2: 3/1
- Channel Type: Unidirectional
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 170ns, 170ns
- Pulse Width Distortion (Max): 70ns
- Rise / Fall Time (Typ): 3ns, 2ns
- Voltage - Supply: 2.5V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
