MX84B024NF2
JAE Electronics
JAE Electronics
CONN PIN HEADER 24 POS R/A PHEV/
$6.12
Available to order
Reference Price (USD)
1+
$6.12000
500+
$6.0588
1000+
$5.9976
1500+
$5.9364
2000+
$5.8752
2500+
$5.814
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX84B024NF2 JAE Electronics Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the JAE Electronics difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.626" (15.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Aqua
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
CNC Tech
3220-40-0300-00-TR
Amphenol ICC (FCI)
77315-401-07LF
Sullins Connector Solutions
PEC11SFBN
Samtec Inc.
TMM-110-01-T-D-SM
Samtec Inc.
TFM-125-02-L-D-WT-K-TR
Samtec Inc.
TSW-118-08-T-S
Samtec Inc.
FTS-125-01-F-D-P
Samtec Inc.
TSW-116-14-F-S
Samtec Inc.

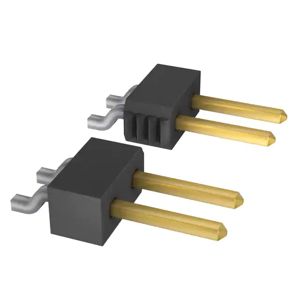

TSM-112-01-L-SH-K-TR
