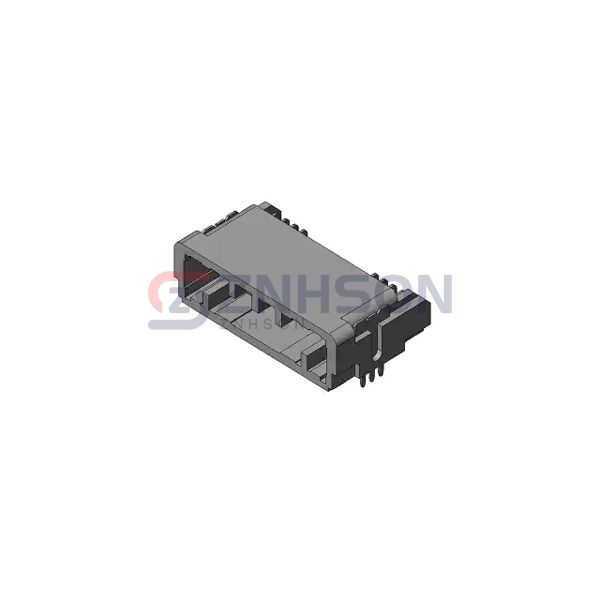

MX77A020HF1
JAE Electronics
JAE Electronics
CONN PIN HDR 20 POS R/A SMT
$6.38
Available to order
Reference Price (USD)
1+
$6.38000
500+
$6.3162
1000+
$6.2524
1500+
$6.1886
2000+
$6.1248
2500+
$6.061
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with MX77A020HF1 JAE Electronics Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.116" (2.95mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.382" (9.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
802-80-032-20-001101
TE Connectivity AMP Connectors
4-103741-0-23
Preci-Dip

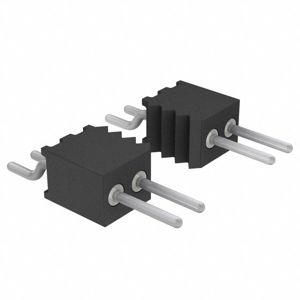

850-80-019-40-251191
Samtec Inc.

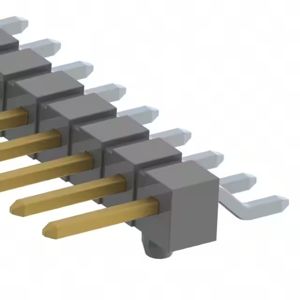

TSM-128-01-L-SH-A-P
Preci-Dip

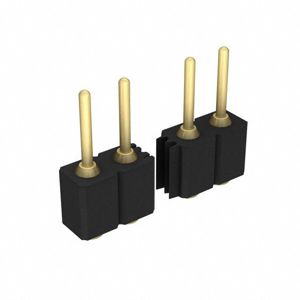

800-10-052-30-480101
Samtec Inc.

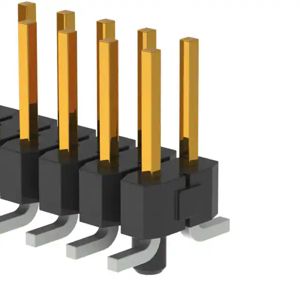

TSM-106-01-S-DV-A-TR
Samtec Inc.

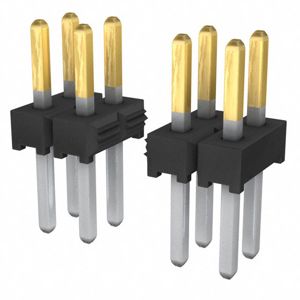

TMM-150-03-F-D
Preci-Dip

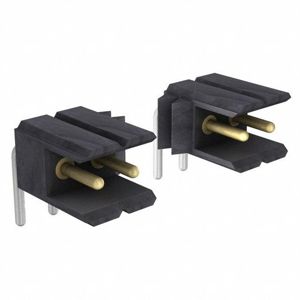

800-V3-005-22-002101
