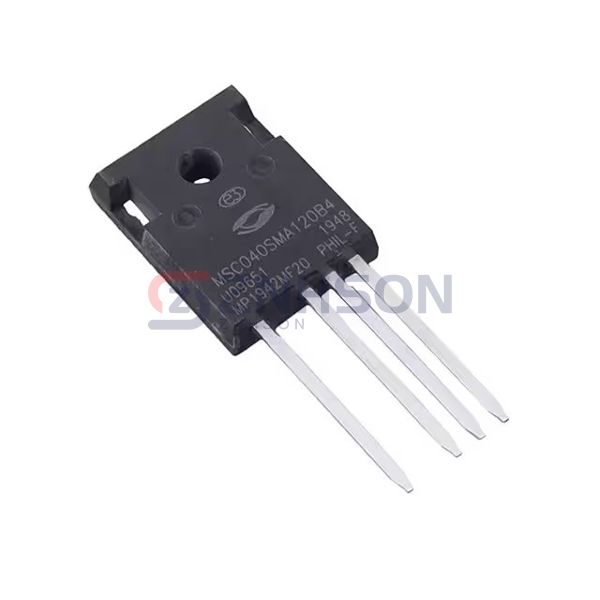

MSC040SMA120B4
Microchip Technology
Microchip Technology
SICFET N-CH 1200V 66A TO247-4
$22.75
Available to order
Reference Price (USD)
1+
$22.75000
500+
$22.5225
1000+
$22.295
1500+
$22.0675
2000+
$21.84
2500+
$21.6125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with MSC040SMA120B4, a premium Transistors - FETs, MOSFETs - Single from Microchip Technology. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust MSC040SMA120B4 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 66A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.6V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs: 137 nC @ 20 V
- Vgs (Max): +23V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1990 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 323W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-4
- Package / Case: TO-247-4
