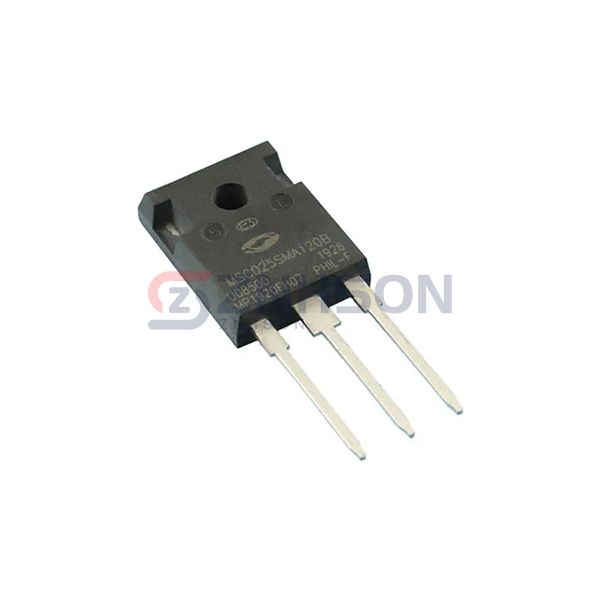

MSC025SMA120B
Microchip Technology
Microchip Technology
SICFET N-CH 1.2KV 103A TO247-3
$36.59
Available to order
Reference Price (USD)
1+
$36.59000
500+
$36.2241
1000+
$35.8582
1500+
$35.4923
2000+
$35.1264
2500+
$34.7605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover MSC025SMA120B, a versatile Transistors - FETs, MOSFETs - Single solution from Microchip Technology, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 103A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 31mOhm @ 40A, 20V
- Vgs(th) (Max) @ Id: 2.8V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 232 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 3020 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 500W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247-3
- Package / Case: TO-247-3
