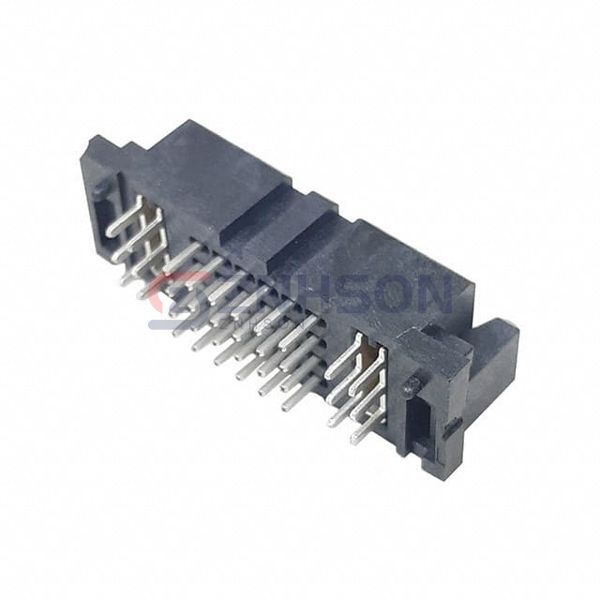

MPSC-01-24-01-7.70-01-L-V

Specifications

• Product Status: Active
• Connector Type: Receptacle
• Contact Type: Forked
• Style: Board to Board
• Number of Positions: 26 (24 + 2 Power)
• Number of Positions Loaded: All
• Pitch - Mating: -
• Number of Rows: 4
• Row Spacing - Mating: 0.079" (2.00mm)
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 10.0µin (0.25µm)
• Insulation Color: Black
• Insulation Height: 0.298" (7.57mm)
• Contact Length - Post: 0.107" (2.71mm)
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Contact Finish - Post: Tin
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: -
• Current Rating (Amps): -
• Voltage Rating: -
