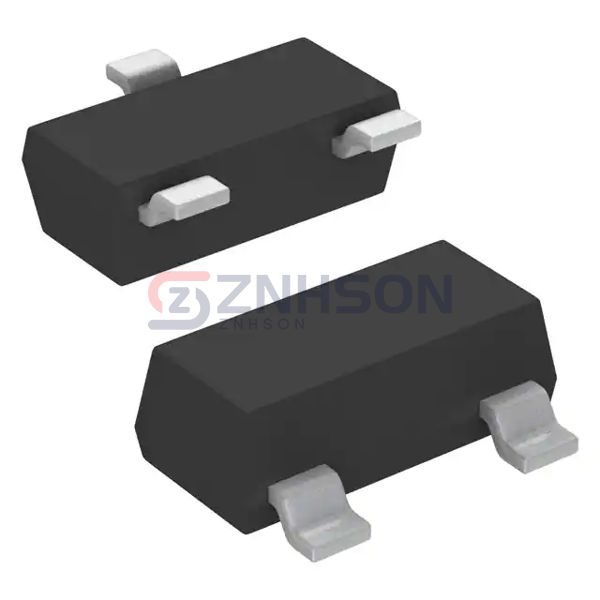

MPMT10012001BT1
Vishay Dale Thin Film
Vishay Dale Thin Film
RES NTWRK 2 RES MULT OHM TO236-3
$0.00
Available to order
Reference Price (USD)
1,000+
$1.86150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Dale Thin Film's MPMT10012001BT1 resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every MPMT10012001BT1 unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Voltage Divider
- Resistance (Ohms): 1k, 2k
- Tolerance: ±0.1%
- Number of Resistors: 2
- Resistor Matching Ratio: ±0.1%
- Resistor-Ratio-Drift: ±2ppm/°C
- Number of Pins: 3
- Power Per Element: 100mW
- Temperature Coefficient: ±25ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: Voltage Divider (TCR Matched)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
- Size / Dimension: 0.113" L x 0.051" W (2.86mm x 1.30mm)
- Height - Seated (Max): 0.040" (1.02mm)
Related Products
Panasonic Electronic Components
EXB-F6V562G
Rohm Semiconductor
MNR15ERRPJ103
Vishay Dale
CRA04S04351R0JTD
CTS Resistor Products
768141564G
TE Connectivity Passive Product
SIL08M151J
CTS Resistor Products
770101511
CTS Resistor Products
743C043102JTR
Rohm Semiconductor

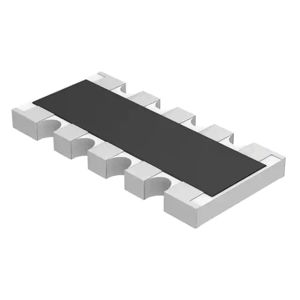

MNR35J5RJ331
Rohm Semiconductor

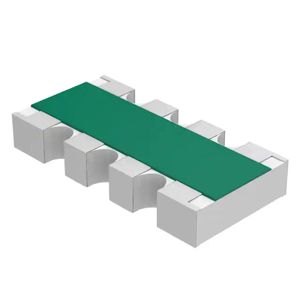

MNR14E0ABJ000
