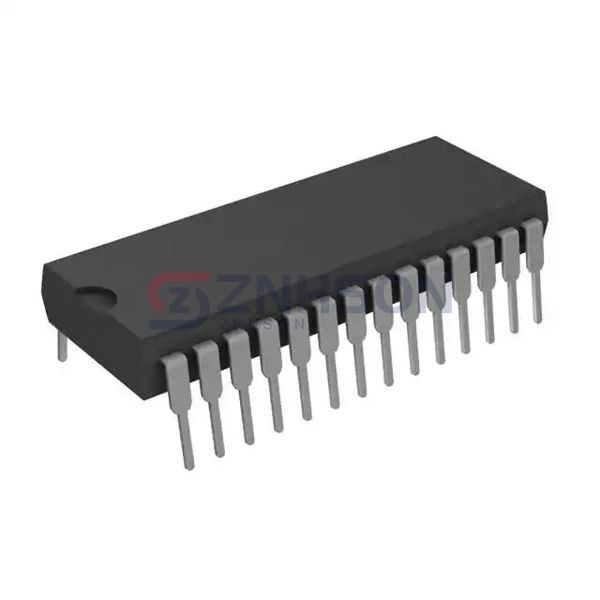

MPC506APG4
Texas Instruments
Texas Instruments
IC MULTIPLEXER 1X16 28DIP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Texas Instruments MPC506APG4 Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Texas Instruments for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Obsolete
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 1.5kOhm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±5V ~ 22V
- Switch Time (Ton, Toff) (Max): 200ns, 250ns (Typ)
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 50pF
- Current - Leakage (IS(off)) (Max): 500pA (Typ)
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 28-DIP (0.600", 15.24mm)
- Supplier Device Package: 28-PDIP
Related Products
Analog Devices Inc./Maxim Integrated
DG417DJ
Vishay Siliconix
DG9232DY-T1-E3
Analog Devices Inc./Maxim Integrated
MAX4610CUD+T
Analog Devices Inc./Maxim Integrated
MAX4800CXZ+
Analog Devices Inc.
ADG512ABR
Analog Devices Inc./Maxim Integrated
MAX4592CSE+T
Texas Instruments
CD4052BM96E4
Analog Devices Inc./Maxim Integrated
MAX4522ESE
Renesas Electronics America Inc

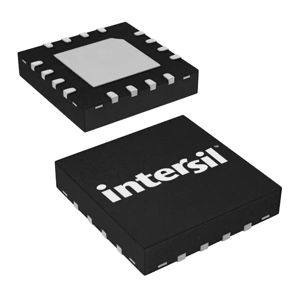

ISL43142IRZ
