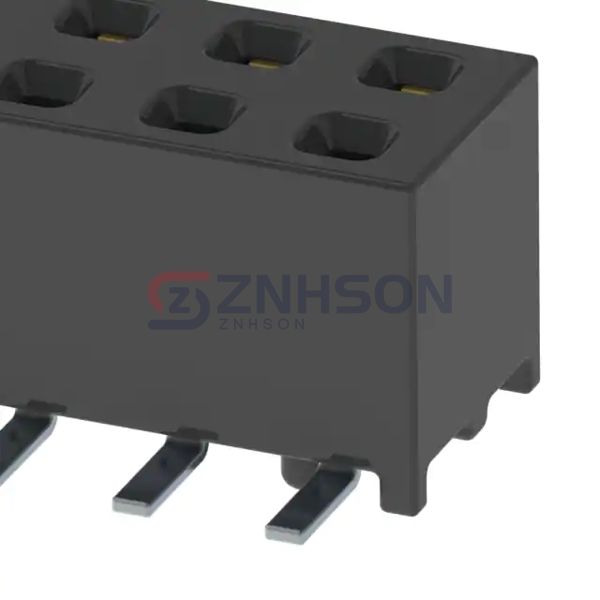

MMS-130-02-S-DV-A

Specifications

• Product Status: Active
• Connector Type: Receptacle
• Contact Type: Female Socket
• Style: Board to Board or Cable
• Number of Positions: 60
• Number of Positions Loaded: All
• Pitch - Mating: 0.079" (2.00mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Insulation Color: Black
• Insulation Height: 0.177" (4.50mm)
• Contact Length - Post: -
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: -
• Contact Finish - Post: Tin
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: Board Guide
• Current Rating (Amps): 3.9A per Contact
• Voltage Rating: -
