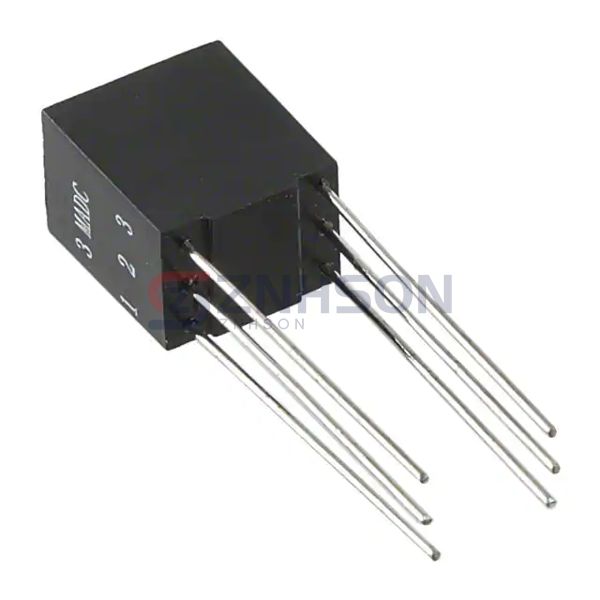

MET-23-T
Triad Magnetics
Triad Magnetics
AUDIO XFMR 1.6KCT/3.2 THRU HOLE
$10.65
Available to order
Reference Price (USD)
1+
$9.28000
10+
$7.21200
25+
$7.01760
50+
$6.04280
100+
$5.76990
250+
$5.65296
500+
$5.55550
1,000+
$5.45804
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Triad Magnetics MET-23-T Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Triad Magnetics for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 22.4:1
- Impedance - Primary (Ohms): 1.6kCT
- Impedance - Secondary (Ohms): 3.2
- DC Resistance (DCR) - Primary: 230Ohm
- DC Resistance (DCR) - Secondary: 1Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 65mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
